Vintage Bonney Forge Piping System Drawing Template

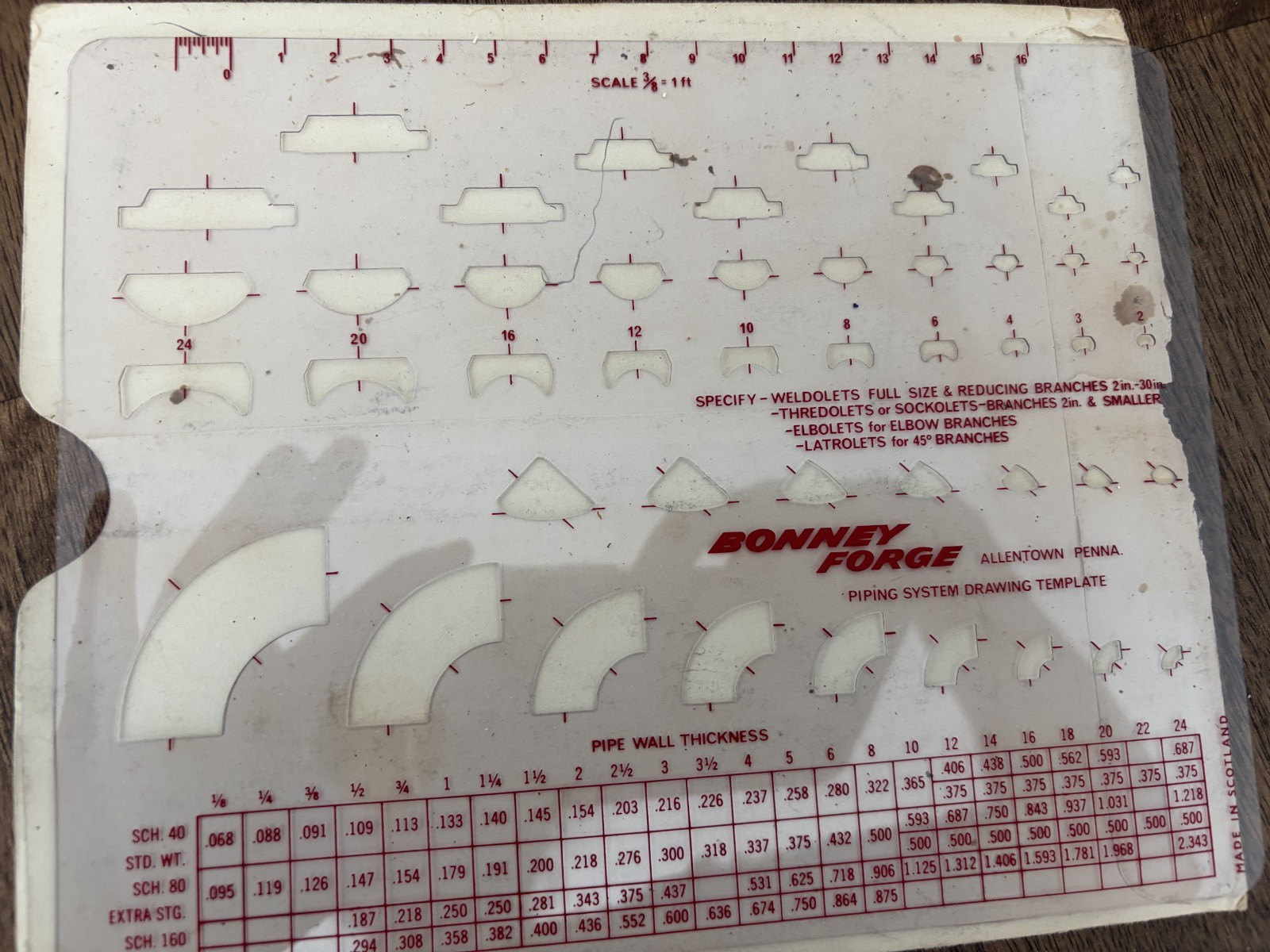

Original vintage drafting template by Bonney Forge, designed for piping system drawings. This type of template was used for industrial, engineering, and mechanical drafting applications.
Features visible on the template include references to:
- Weldolets
- Thredolets / Sockolets
- Elbolets
- Latrolets
- Multiple branch and elbow connection cutout shapes
- Pipe wall thickness chart
- Marked Bonney Forge
- Marked Allentown, Penna.
- Marked Made in Scotland
Included:
- Clear plastic Bonney Forge Piping System Drawing Template
- Original paper sleeve/envelope shown in photos
Great piece for:
- Vintage drafting tool collectors
- Industrial memorabilia collectors
- Engineers or architects
- Display or reference
Condition: Pre-owned vintage condition with visible wear from age and use. Template has scuffs/scratches and the paper sleeve has heavy wear, staining, tearing, and edge damage. Please see all photos for best description of condition.
Item Specifics
Brand: Bonney Forge
Type: Drafting Template
Model: Piping System Drawing Template
Material: Plastic
Color: Clear with Red Markings
Country/Region of Manufacture: Scotland
Vintage: Yes
Original/Reproduction: Original
The Vintage Bonney Forge Piping System Drawing Template Drafting Tool is a rare and collectible item for engineers and drafting enthusiasts. Made by the reputable brand Bonney Forge, this tool was used for creating detailed drawings of piping systems. The sleek design and functionality of this vintage drafting tool make it a valuable addition to any collection, especially for those interested in engineering and drafting history. With its convenient sleeve for storage and transport, this template drafting tool is both practical and aesthetically pleasing.
